SPECIFICATION
Specs
Chipset
Ambarella
Sensor
CMOS sensor
LCD
2.0" High light LCD
Lens
F/NO=2.5, 170° wide
angle lens
Waterproof&dustproof
IP66
Drop test
2M
Memory
Default 32G (up to
64G)
Working temperature
-30℃~55℃
Storage Temperature
-40℃~55℃
Interface
&
Function
Speaker
Built-in
Microphone
Built-in
Earphone
With walkietalkie
Audio/video input interface
Mini USB 2.0
Built-in GPS
Get locating within 2
min
Built-in
WIFI
Optional
Live video transmission
Work with Wi-Fi
On-vehicle function
Fixed
on vehicle with recharge and intercom function

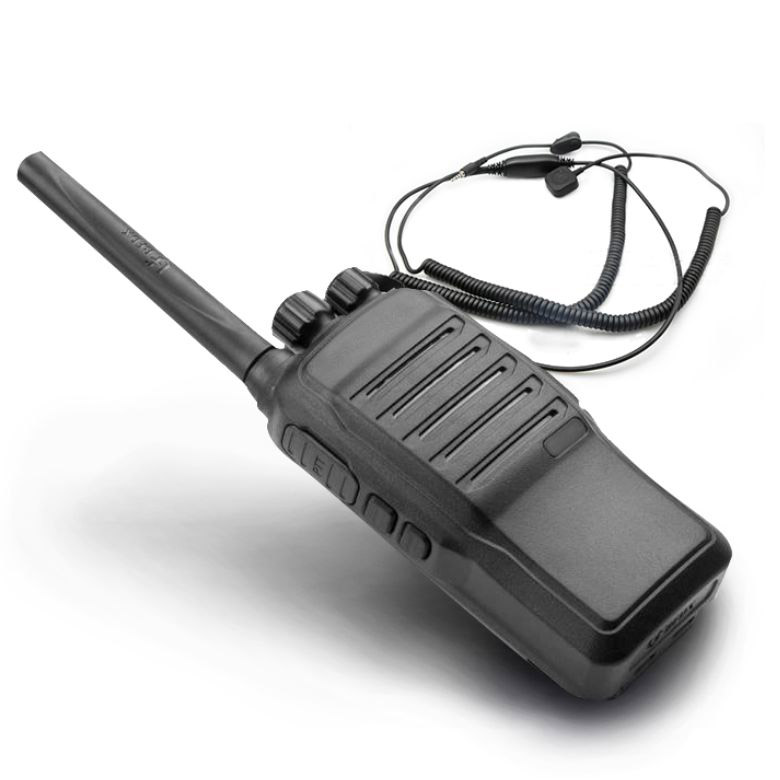

Walkietalkie compatibility
Analog compatible
Output
pixel
33MP
max
Shutter
Electronic
Focusing
FF
(F.No.=2.5)
Focal distance
50cm-∞
Exposure control
Auto
File format
JPG
Video
&
Audio
Video resolution
SHD:2304X1296(30fps)
FHD:1920X1080(30fps)
HD:1280X720(60fps)
HD:1280X720(30fps) (default)
WVGA：848 x480（30fps)
Video (compression) format
MOV(H.264)
Continuous video recording time
Around
8 hours (HD)
Around 10 hours (WVGA)
Audio format in audio mode
WAV
Continous audio recording time
Around
10 hours
Operation
&
UI
LED
power-on,
recharge, video recording, audio recording
Night-vision distance
Strengthen
energy-saving IR LED with 15 meters visual range
Photosensitive reaction
working
with automatical IR cut
IR switching way
Auto
Playback
All
files playback
Photo taking while recording
YES
Watermark
Year/Month/Day/Hour/Minute/Second
OSD languages
English/Chinese
File generated format
PICTxxxx.
JPG/WAV/MOV
Size
Size(mm)
93mm(L)×59mm(W)×30mm(H)
Weight
Around
143g(battery included)
Power Supply
Built-in
battery
2800mAh
Recharging time
around
5 hours
Standby time
around
20 hours
Recharging way
adapter/USB/car
charger
Cable
USB
cable
Charge base
5V/2A
Accessories
Standard
Crocodile
clip/adapter/USB cable/CD(user manual included)/Quick operation guide

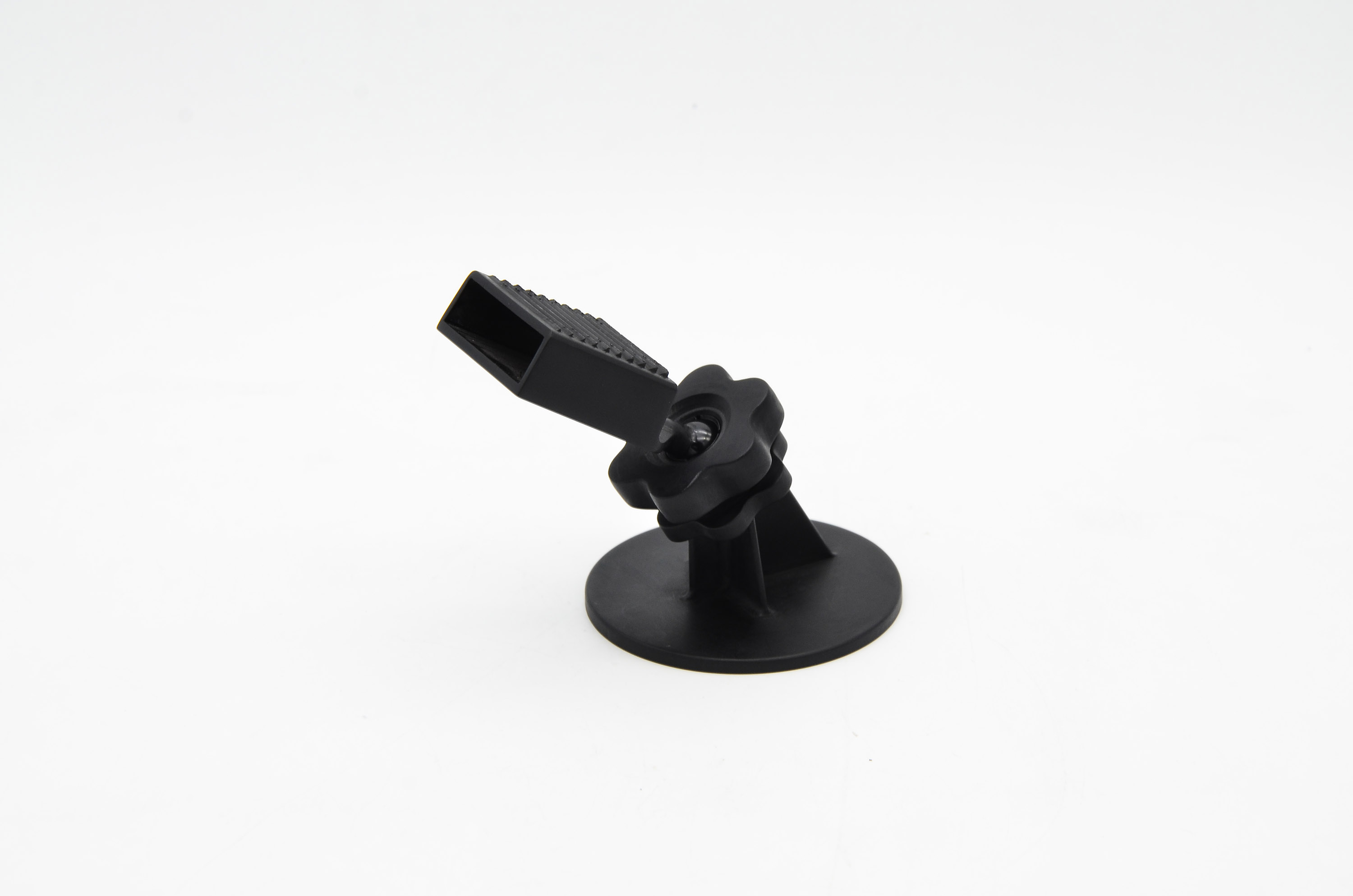

Optional
Charging

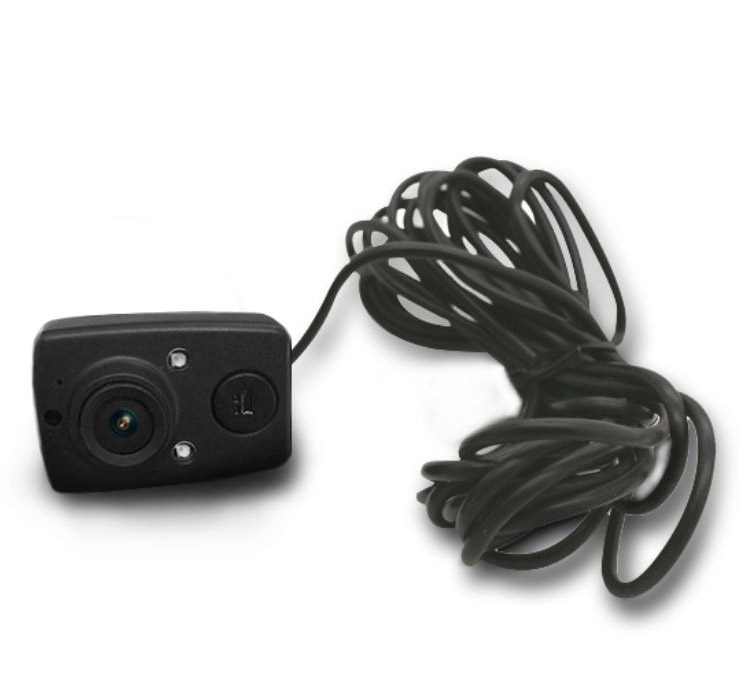

station/ car mount/ external camera
? ? ? ? ? ??? ? ? ? ? ??? ? ? ? ? ?
